Puzzle-type multi-level parking systems engineered for maximum space efficiency. Up to 7 levels, 3,000 kg capacity, PLC intelligent control, anti-fall protection.
PSH puzzle-type parking systems are engineered for residential complexes, commercial districts and urban centers with limited land. Our modular multi-level systems multiply parking capacity without expanding your footprint, delivering industry-leading safety, intelligent PLC control and flexible design.
Mechanical anti-fall locking and front/back sensors protect every vehicle and operator. Overload protection and emergency stop systems provide fail-safe operation at all times.
Standardized PLC program with button panel control. Supports IC card, touchscreen, license plate recognition and mobile app — minimal on-site debugging required for rapid deployment.
Ground sliding to 7 above-ground levels plus -1/-2 pit levels. Modular pre-fabricated structure adapts to irregular sites, back-to-back and tandem configurations. Expandable to meet future demand.
High-resolution engineering drawings showcasing all configurations and structural details. Click any image to explore in full screen.
Three load capacity variants — same proven safety platform, scaled for your vehicle and site requirements.
| Parameter | PSH-2000 | PSH-2500 POPULAR | PSH-3000 |
|---|---|---|---|
| Vehicle Weight | 2,000 kg | 2,500 kg | 3,000 kg |
| Vehicle Height | 1,550 – 2,100 mm | ||
| Platform Width | 2,100 mm standard · Customizable on request | ||
| Parking Levels | Ground sliding to 7 levels above · Pit -1 / -2 levels available | ||
| Lifting Motor | 2.2 kW | 3.7 kW | 3.7 kW |
| Sliding Motor | 0.2 kW (all models) | ||
| Lifting Speed | 4 m / min | ||
| Sliding Speed | 8 m / min | ||
| Power Supply | 230V – 415V · 3-Phase · 50 / 60 Hz | ||
| Operation | PLC + Button Panel | ||
| Safety System | Anti-fall locking · Front / Back sensor · Overload & E-Stop | ||
| Cycle Speed | < 90 seconds (depends on levels) | ||
| Surface Finish | Powder coating / Hot-dip galvanizing | ||
Mechanical anti-fall lock with front/back proximity sensors. Overload protection and emergency stop guarantee fail-safe operation at every level.
Standardized PLC program with button panel. Pre-set logic minimizes on-site debugging and enables rapid commissioning for fast system deployment.
Ground sliding to 7 above-ground levels. Optional pit levels (-1/-2) maximize density. Expandable modular structure accommodates future growth.
Choose industrial powder coating or hot-dip galvanizing for long-term corrosion protection. Both finishes exceed commercial service-life requirements.
Pre-fabricated modular components fit irregular plots. Supports back-to-back, tandem and custom entry/exit layouts for any urban site constraint.
4 m/min lifting and 8 m/min sliding. Full cycle under 90 seconds. Dual-motor system ensures smooth, reliable throughput at every level.

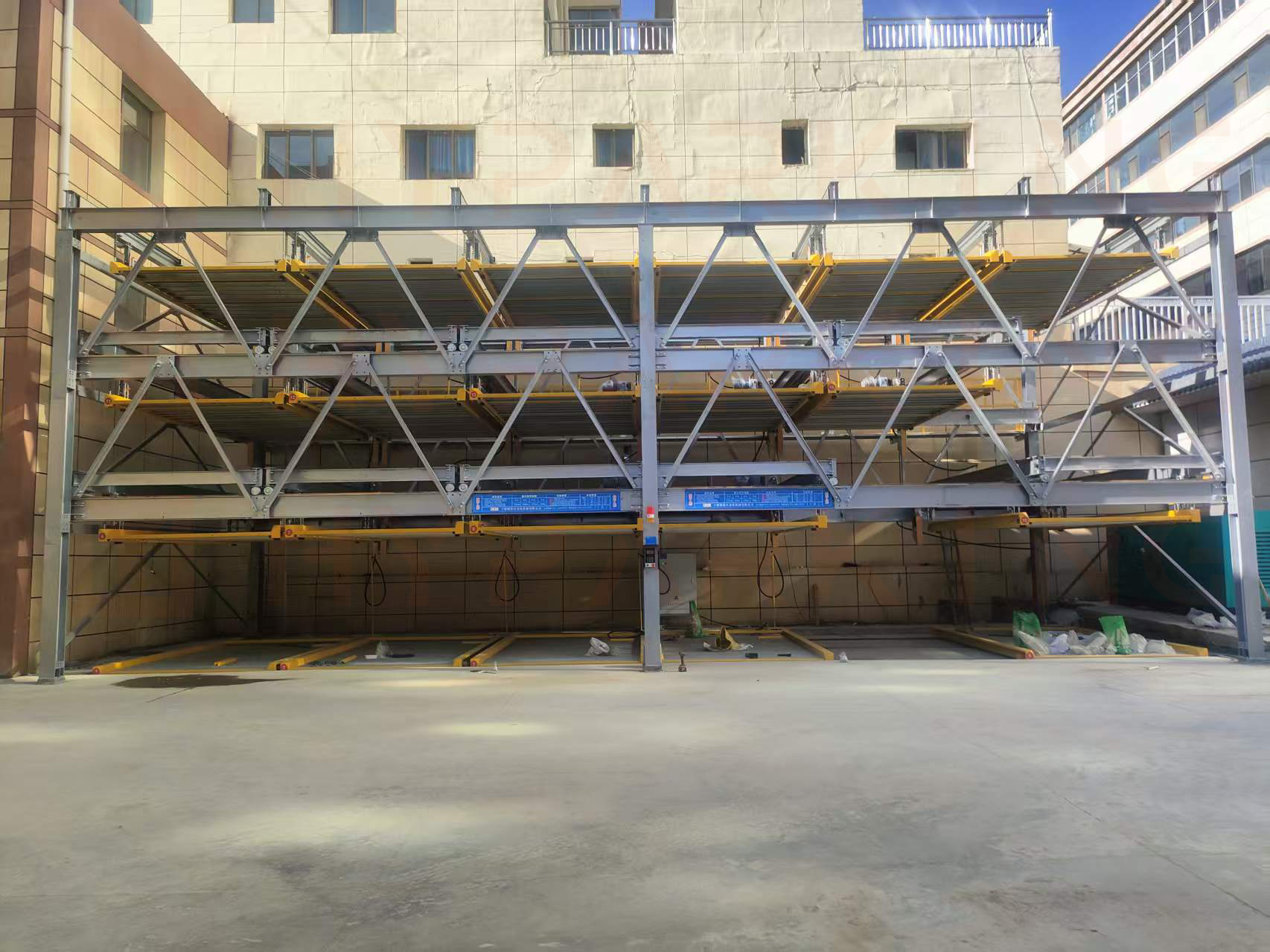

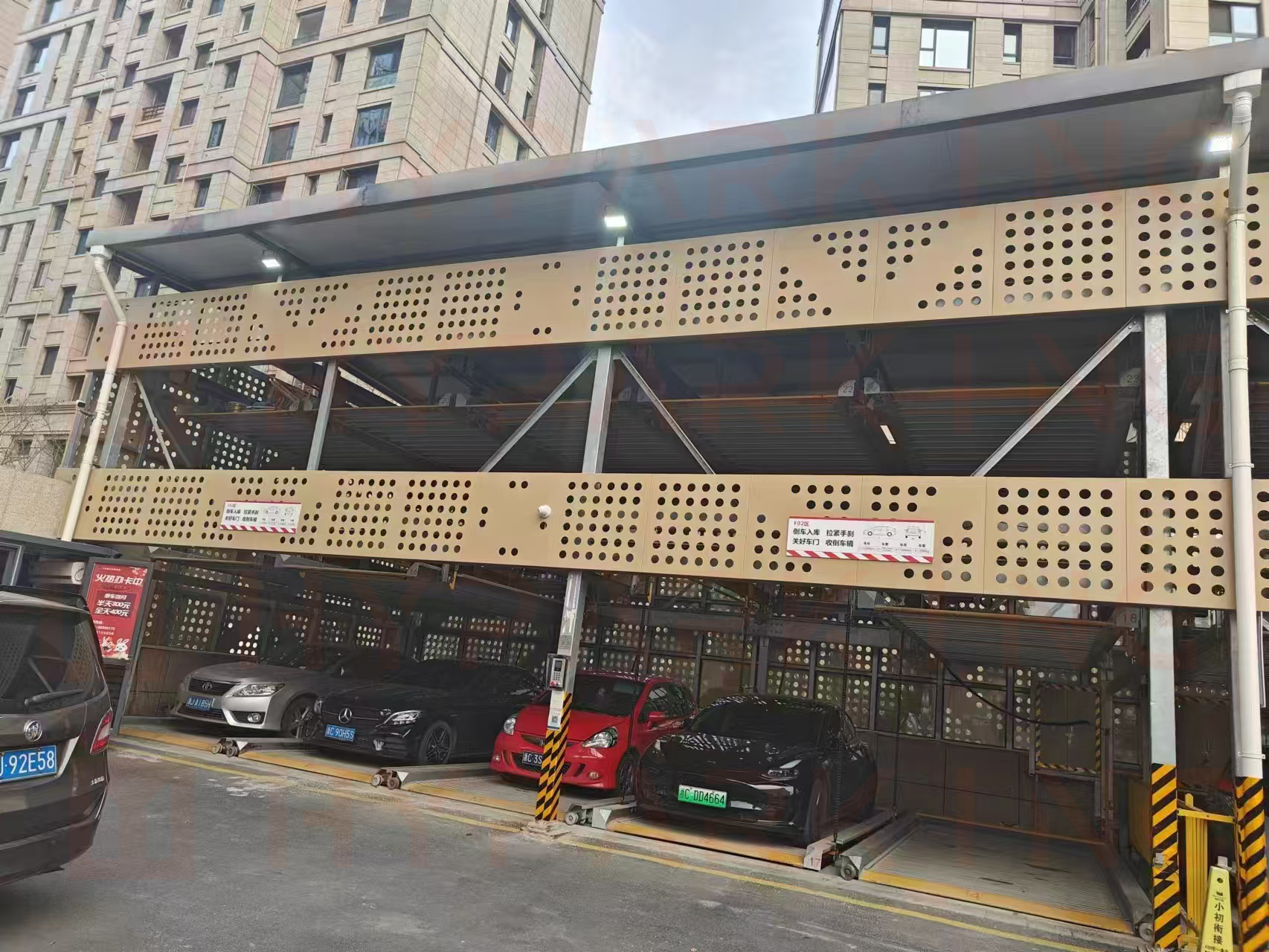

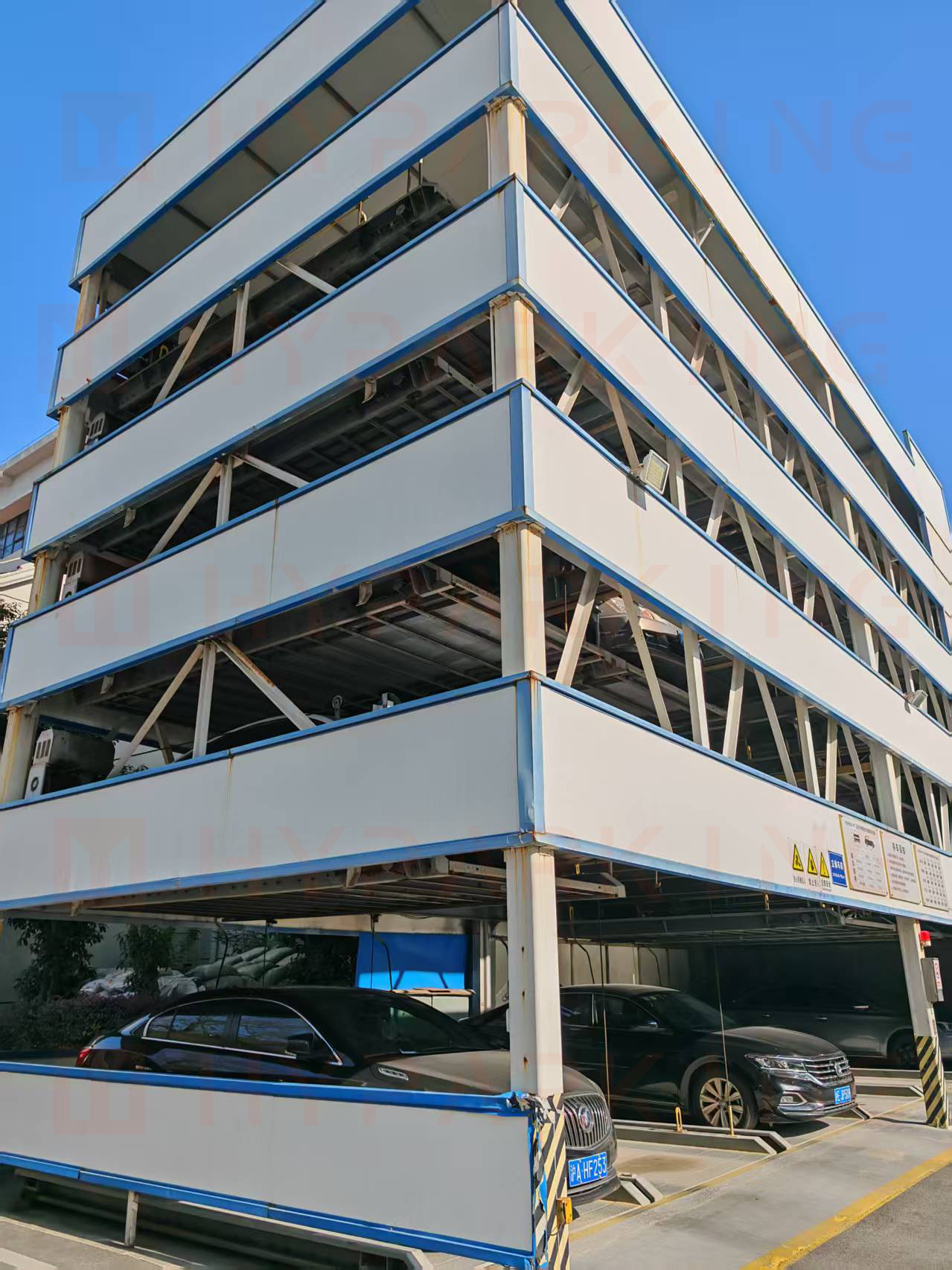

PSH puzzle parking systems installed and operating in residential and commercial facilities. Real projects, real performance.
Our engineering team will help you design the optimal multi-level configuration for your site. Request a custom quote or technical consultation today.
